CAD Composite Design Software
Innovative CAD pattern design software enables industries to create faster cycles and manufacture products to fit their customer needs. This unique composite design software uses one platform offering powerful 2D and 3D design and nesting software for technical industries including composites, aerospace and automotive.
About Our CAD Pattern Design Software
2D CAD Software
We provide sophisticated and user-friendly composite CAD software for businesses specialising in the design and production of composite materials utilised across various sectors, including automotive, aerospace, upholstery and more.
The intuitive interface is based on Microsoft Windows and has the same efficient functionalities such as cut, copy and paste. This enables flexible, user-friendly composite creation.
Create Your Ply

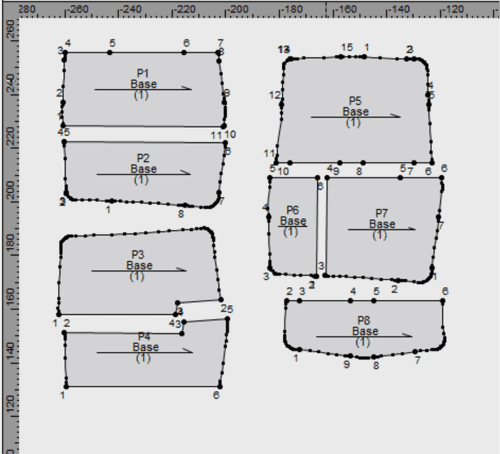

Ply drafting is revolutionised using the 2D composite design software. Creating digital kits from concept to cutting table are generated in a fraction of the time taken using traditional methods. Draft plies from scratch, edit and finalise digital patterns using powerful editing tools.
Plys Made Digital
Digitise existing hard copy plies to generate digital patterns with high level accuracy.
Import/Export
Hassle free digital exchange that is fully compatible with all major CAD solutions such as SolidWorks, CATIA and Rhino 3D. Transformable formats include DXF, Adobe Illustrator, Gerber Cutter and HPGL.
3D Flattening
With Assyst Bullmer’s CAD pattern design software, use 3D technology, import images or object formats into 3D flattening software to build accurate ply pieces from concept to reality.

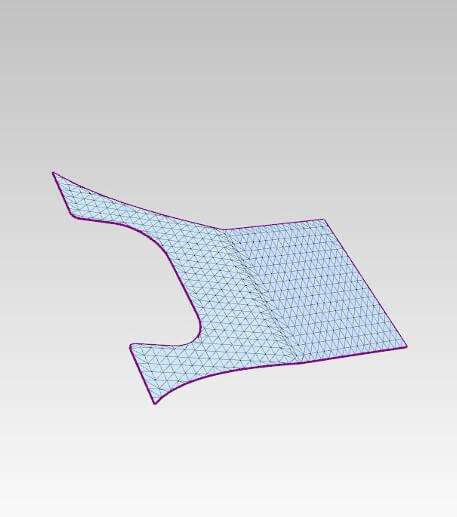

- Transform a three-dimensional objects’ surface into two-dimensional patterns

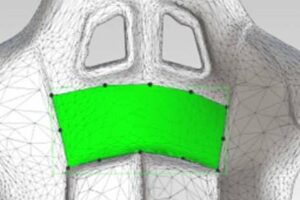

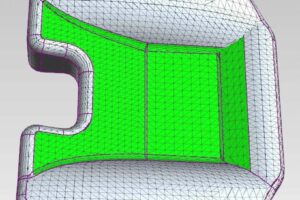

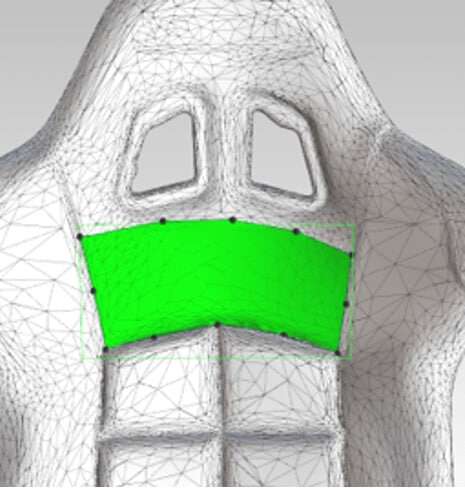

- Select segments of topology to extract panels to flatten for manufacturing

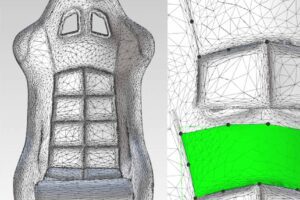

- Panels can be drafted from the 3D form and flattened for manufacture
Key Benefits of Composite Design Software
- Highly accurate and efficient
- Increase design and manufacturing times
- Compatible with various CAD solutions, CAM systems and CNC digital cutting machines
- Protect your files and sensitive information with cloud storage
- User-friendly and customisable interface
- Simplify your composite pattern design and cutting
