Feeding Systems
Material Handling

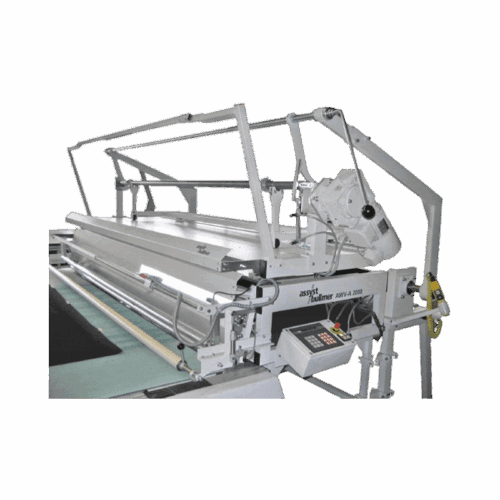

Assyst Bullmer provides a wide range of feeding systems that ensures correct and efficient material flow through the cutting system. These systems can be driven or non-driven, used with challenging materials and ensure tension free feeding and correct edge alignment of the fabrics.
Suitable for:
Composites, Upholstery, Graphics, Rubber, PVC, MESH, AND OTHER TEXTILES…
About Material Feed System
UNWINDING SYSTEMS

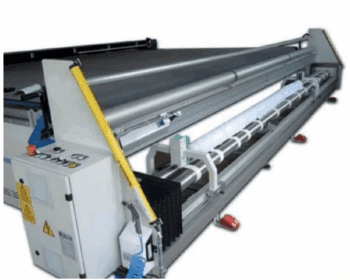

SAV 300/600 D
Materials
Textiles, PVC, Mesh etc.
Sectors
Base
- Unwinder without unrolling bar
- Edge control (can be switched off)
- Light beam safety device in unwindig area
- Unwinder with driven double roller
Working width
1400 – 5000 mm
Max. roll weight
300 – 600 kg
Max. roll diameter
300 – 600 mm
Options
Ionisation device
SAV 1000
Materials
Strong, Non-elastic, Materials.
Sectors
Base
- Unwinder within calendarrolls deduction and non driven unrolling bar with pneumatic brake
- Edge control, sensor controlled material independent threading
- Manual threading and unthreading
- Stationary version
- Line laser for aligning materials
Working width
1400 – 3200 mm
Max. roll weight
1000 kg
Max. roll diameter
600 mm
+ Further explanations about weight & diameter available

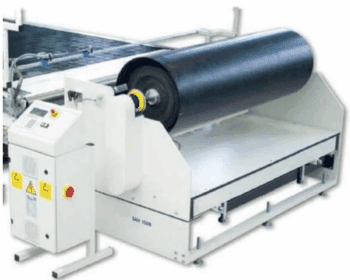

SAV 1000 Z
Materials
Extemely versatile
Sectors
Base
- Unwinder within calendarrolls deduction and non driven unrolling bar with pneumatic brake
- Edge control, sensor controlled material independent threading
- Manual threading and unthreading
- Stationary version
- Line laser for aligning materials
Working width
1400 – 3200 mm
Max. roll weight
1000 kg
Max. roll diameter
600 mm
Protection level IP60 orientated by DIN EN60529

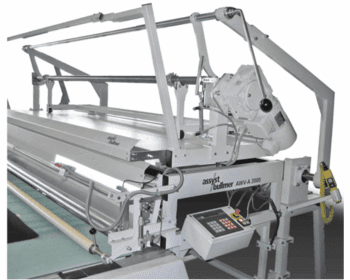

AWV-A 2000
Materials
Extemely versatile
Sectors
Base
- Unwinder drivern by unrolling bar
- Edge control
- Roll is driven by center drive
Working width
1400 – 3200 mm
Max. roll weight
100 kg
Max. roll diameter
500 mm
Options
Loading-system AL-T 75A or AL-T 120 A
Protection level IP60 orientated by DIN EN 60529

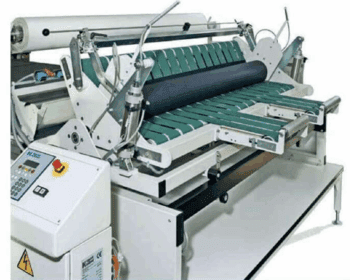

AWV 20
Materials
Materials, that don’t tend to full
Sectors
Base
- Unwinder drivern by unrolling bar
- Cradle technique
- Edge control
- Roll is driven by center drive
Working width
1400 – 3200 mm
Max. roll weight
100 kg
Max. roll diameter
500 mm
Options
Lift table to load the AWV 20
Loading-system AL-T 75A or AL-T 120 A
Protection level IP60 orientated by DIN EN 60529
We’re Here to Help
For any enquiries on our range of material feeding systems, reach our friendly team by calling 01924 373900 or send us your details using our contact form. Improve the efficiency of your production, seamlessly integrate with your other machinery and enhance safety with automatic operations, all with our high-tech feeding systems.
