SAV
SAV
The SAV feeders are best suited for applications that have roll widths starting from 1400mm up to 5000mm wide. The SAV is capable of handling material rolls up to 1500kg rolls in weight and 1400mm in diameter.
As the rolls can sit between two rollers, there is no need to thread a shaft through the rolls core, this makes roll changes simple and fast. As standard the SAV comes with Edge control to keep your rolls straight and true to the cutting machine regardless of how the roll has been stored/re-rolled, safety sensors for safety operating procedures and IP 60 ratings for composite applications.

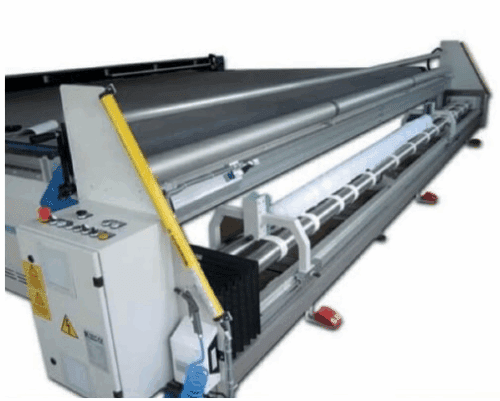

SAV 300/600 D
Materials
Textiles, PVC, Mesh etc.
Sectors
Base
- Unwinder without unrolling bar
- Edge control (can be switched off)
- Light beam safety device in unwindig area
- Unwinder with driven double roller
Working width
1400 – 5000 mm
Max. roll weight
300 – 600 kg
Max. roll diameter
300 – 600 mm
Options
Ionisation device
SAV 1000
Materials
Strong, Non-elastic, Materials.
Sectors
Base
- Unwinder within calendarrolls deduction and non driven unrolling bar with pneumatic brake
- Edge control, sensor controlled material independent threading
- Manual threading and unthreading
- Stationary version
- Line laser for aligning materials
Working width
1400 – 3200 mm
Max. roll weight
1000 kg
Max. roll diameter
600 mm
+ Further explanations about weight & diameter available
SAV 1000 Z
Materials
Extemely versatile
Sectors
Base
- Unwinder within calendarrolls deduction and non driven unrolling bar with pneumatic brake
- Edge control, sensor controlled material independent threading
- Manual threading and unthreading
- Stationary version
- Line laser for aligning materials
Working width
1400 – 3200 mm
Max. roll weight
1000 kg
Max. roll diameter
600 mm
Protection level IP60 orientated by DIN EN60529
